Product Summary

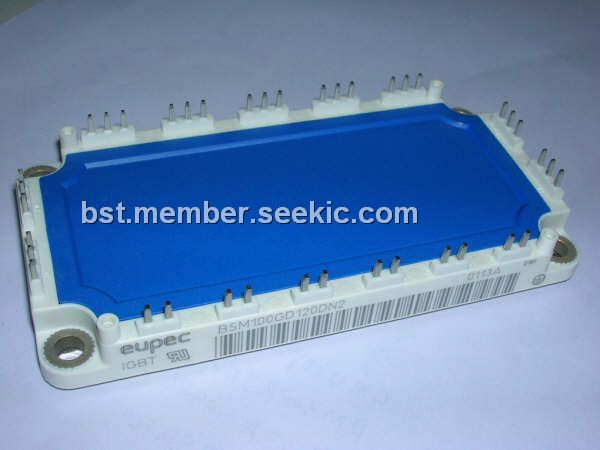

The BSM100GD120DN2 is an IGBT module.

Parametrics

BSM100GD120DN2 maximum ratings: (1)Chip temperature Tj: + 150 ℃; (2)Storage temperature Tstg: -55 to + 150 ℃; (3)Thermal resistance, chip case RthJC ≤ 0.182 K/W; (4)Diode thermal resistance, chip case RthJCD ≤ 0.36; (5)Insulation test voltage, t = 1min. Vis: 2500Vac; (6)Creepage distance: - 16 mm; (7)Clearance: - 11; (8)DIN humidity category, DIN 40 040: F; (9)IEC climatic category, DIN IEC 68-1: 55 / 150 / 56.

Features

BSM100GD120DN2 features: (1) Solderable Power module; (2)3-phase full-bridge; (3) including fast free-wheel diodes; (4) Package with insulated metal base plate.

Diagrams

BSM100GD120DN2 block diagram
