Product Summary

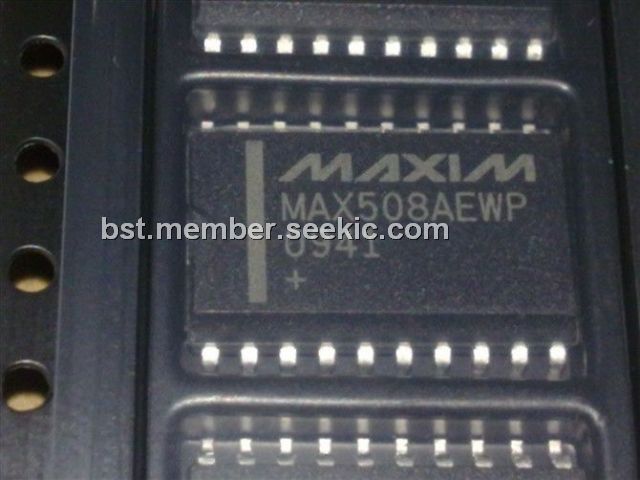

The MAX508AEWP is a complete 12-bit, voltage-output digital-to-analog converter. The DAC output voltage and the reference have the same polarity, allowing single-supply operation.
Parametrics
Absolute maximum ratings: (1)VDD to AGND: -0.3v, + 17v; (2)VDD to DGND: -0.3v, +17v; (3)VDD to VSS: -0.3v, +34v; (4)AGND to DGND: -0.3V, VDD; (5)digital input voltage to GND: -0.3v, VDD+0.3v; (6)VOUT to AGND: VSS, VDD; (7)VOUT to VSS: 0v, +34v; (8)VOUT to VDD: -34V, 0V; (9)REFOUT to AGND: -0.3V, VDD+0.3v; (10)continuous power dissipation(any package) to +75℃: 450mW; derate above +75℃: 6mW/℃; (11)operating temperature range: -40℃ to +85 ℃; (12)storage temperature range: -65℃ to +150℃; (13)lead temperature: +300℃.
Features
Features: (1)12-bit voltage output; (2)Internal voltage reference; (3)faast μp interface; (4)8+4 data-bus widths; (5)single+12v to dual ±15v supply operation; (6)20- and 24-pin DIP and wide SO package.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MAX508AEWP |
Maxim Integrated Products |
DAC (D/A Converters) |
Data Sheet |
Negotiable |
|
||||||||||||
 |
MAX508AEWP+ |
Maxim Integrated Products |
DAC (D/A Converters) 12-Bit Precision DAC |
Data Sheet |
|
|
||||||||||||
|
MAX508AEWP+T |
Maxim Integrated Products |
DAC (D/A Converters) 12-Bit Precision DAC |
Data Sheet |
|
|
||||||||||||
|
MAX508AEWP-T |
Maxim Integrated Products |
DAC (D/A Converters) |
Data Sheet |
Negotiable |
|
||||||||||||
