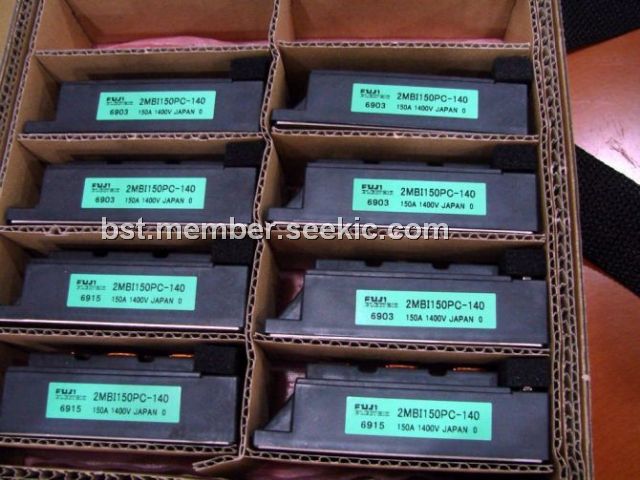

The 2MBI150PC-140 is a IGBT module designed for high Power Switching, A.C. Motor Controls, D.C. Motor Controls, Uninterruptible Power Supply, etc.
Parametrics
Absolute maximum ratings: (1)Collector-Emitter Voltage, VCES: 1400 V; (2)Gate -Emitter Voltage, VGES: ± 20 V; (3)Collector Current: IC at Continuous TC=25℃: 200A; IC at Continuous TC=80℃: 150A; IC pulse at 1ms TC=25℃: 400A; IC pulse at 1ms TC=80℃: 300A; -IC: 150A; -IC PULSE: 300A at 1ms; (4)Max. Power Dissipation, PC: 1100 W; (5)Operating Temperature, Tj: +150 ℃; (6)Storage Temperature, Tstg: -40 ~ +125 ℃; (7)Isolation Voltage A.C. 1min. Vis: 2500 V; (8)Screw Torque: Mounting: 3.5 Nm; Terminals: 3.5Nm.
Features
Features: (1)Square SC SOA at 10 x IC; (2)Simplified Parallel Connection; (3)Narrow Distribution of Characteristics; (4)High Short Circuit Withstand-Capability.

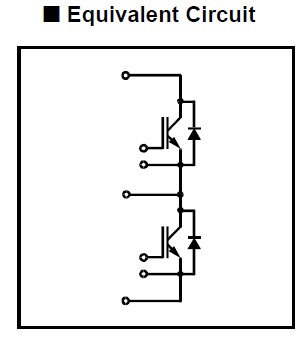

Diagrams
