Product Summary

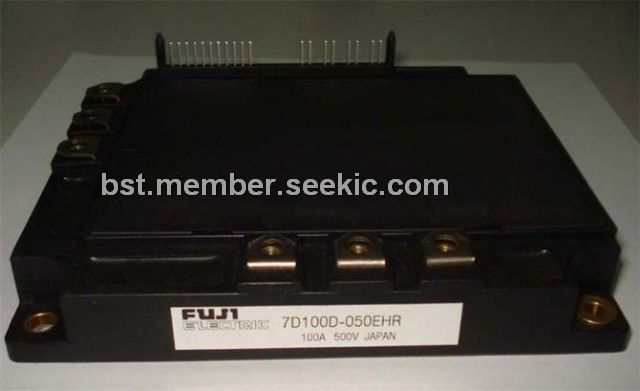

The 7D100D-050EHR is an IPM module. It is suitable for Inverter for motor drive, AC and DC servo drive amplifier, UPS (Uninterruptible power supply).

Features

7D100D-050EHR features: (1) Low power loss and soft switching; (2) Converter Diode Bridge Dynamic Brake Circuit; (3) Compatible with existing IPM-N series packages; (4) High performance and high reliability IGBT with overheating Protection; (5) Higher reliability because of a big decrease in number of parts in built-in control circuit; (6) Temperature protection provided by directly detecting the junction temperature of the IGBTs.
