Product Summary

The FP40R12KE3G is an IGBT module.

Parametrics

FP40R12KE3G absolute maximum ratings: (1) repetitive peak reverse voltage, VRRM: 1600V; (2) maximum RMS current at rectifier output, IRMSmax: 60A; (3) DC forward current, Id: 40A; (4) surge forward current, IFSM: 260A; (5) I2t value, I2t: 340A2s.

Features

FP40R12KE3G features: (1) forward voltage, VF: 1.2V; (2) threshold voltage, V (TO): 0.8V; (3) slope resistance, FT: 10.5m; (4) reverse current, IR: 2mA; (5) lead resistance, terminals-chip, RAA+CC: 5m.

Diagrams

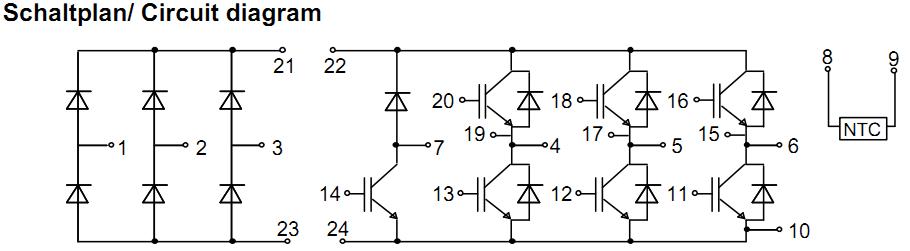

FP40R12KE3G block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
FP40R12KE3G
FP40R12KE3G
Infineon Technologies
IGBT Transistors 1200V 40A PIM
Data Sheet
0-5: $92.28
5-10: $83.05
