Product Summary
The BSM300GB120DLC is a type of IGBT Module. It is characterized by low drive power, low vce (sat), discrete super-fast recovery, ree-wheel diode, high frequency operation and more. The typical applications of the product include DC motor control, NC equipment, AC motor control, contact less switches, electric furnace temperature control, light dimmers, welders and so on.
Parametrics
BSM300GB120DLC maximum rated values:(1)collector-emitter voltage, VCES: 1200 V at Tvj =25℃; (2)DC-collector current : IC,nom. =300 A at TC = 80 ℃; IC= 625 A at TC = 25 ℃; (3)repetitive peak collector current, ICRM: 600 A at tP = 1 ms, TC = 80℃ ; (4)total power dissipation, Ptot: 2,5 kW at TC= 25℃, Transistor ; (5)gate-emitter peak voltage, VGES: +/- 20V V; (6)DC forward current, IF: 300 A; (7)repetitive peak form. current, IFRM: 600 A at tP = 1 ms; (8)Diode I2t - value, Diode, I2t: 19 k A2s at VR = 0V, tp = 10ms, TVj = 125℃; (9) Insulation test voltage, VISOL: 2.5kV at RMS, f = 50 Hz, t = 1 min.
Features
BSM300GB120DLC mechanical properties:(1)Isolation internal insulation: Al2O3; (2)creepage distance: 20 mm; (3)clearance distance: 11 mm; (4)CTI comperative tracking index: 225; (5)mounting torque:M:3-6Nm; (6)terminal connection torque:M:2.5-5Nm; (7)weight G: 340 g.

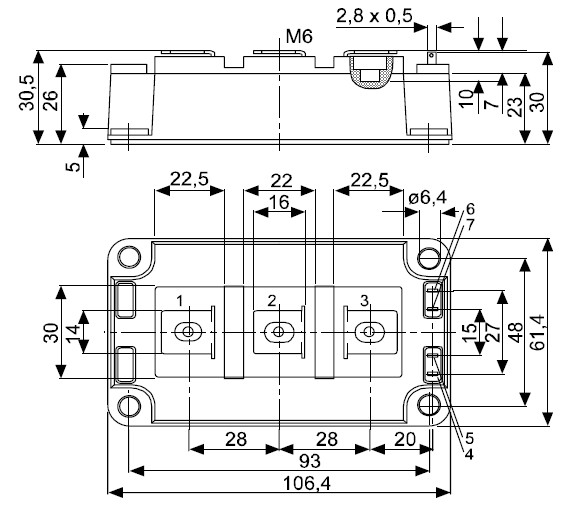

Diagrams
