Product Summary

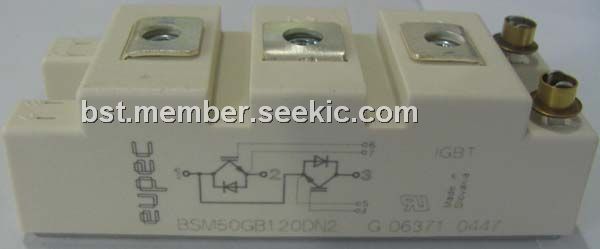

The BSM50GB120DN2 is an IGBT power module.

Parametrics

BSM50GB120DN2 absolute maximum ratings: (1)Collector-emitter voltage, VCE: 1200 V; (2)Collector-gate voltage RGE = 20 kW, VCGR: 1200V; (3)Gate-emitter voltage, VGE: ± 20v; (4)DC collector current, IC: 78A when Tc=25℃; 50A when Tc=80℃; (5)Pulsed collector current, tp = 1 ms, ICpuls: 156A when TC = 25℃; 100A when TC = 80℃; (6)Power dissipation per IGBT, TC = 25℃, Ptot: 400W; (7)Chip temperature, Tj: + 150℃; (8)Storage temperature, Tstg: -55 to +150℃; (9)Thermal resistance, chip case, RthJC ≤ 0.3 K/W; (10) Diode thermal resistance, chip case RthJCD: ≤ 0.6K/W; (11) Insulation test voltage, t = 1min, Vis: 2500Vac; (12) Creepage distance: 20 mm; (13) Clearance: 11mm.

Features

BSM50GB120DN2 features: (1) Half-bridge; (2) including fast free-wheeling diodes; (3) Package with insulated metal base plate.

Diagrams

BSM50GB120DN2 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
BSM50GB120DN2
BSM50GB120DN2

Infineon Technologies

IGBT Modules 1200V 50A DUAL

Data Sheet

0-1: $44.28
1-5: $42.07
5-10: $39.85
