Product Summary

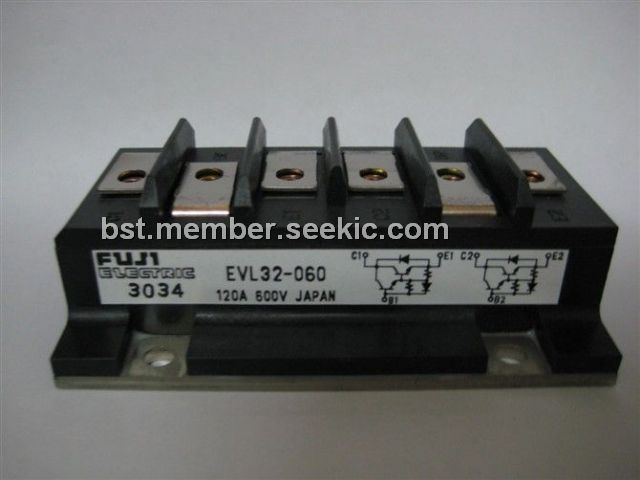

The EVL32-060 is a Darlington Independent Power Module.

Parametrics

EVL32-060 absolute maximum ratings: (1)Isolated Case (Y/N)=Yes; (2)Circuits Per Package=2; (3)V(BR)CEO (V)=600; (4)V(BR)CBO (V)=600; (5)I(C) Abs.(A) Collector Current=120; (6)Absolute Max. Power Diss. (W)=500; (7)h(FE) Min. Static Current Gain=70; (8)@I(C) (A) (Test Condition)=120; (9)@VCE (test)=5.0; (10)t(r) Max. (s) Rise time=2.0u; (11)t(f) Max. (s) Fall time.=3.0u; (12)Package=Module-s.
