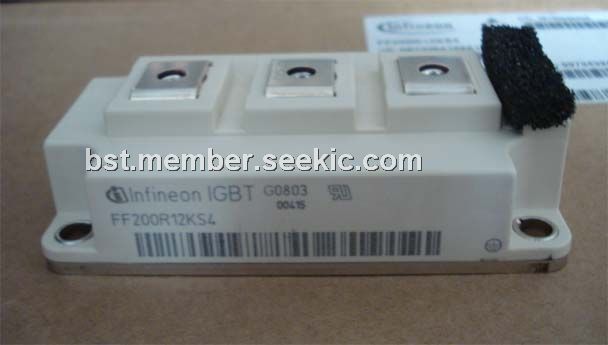

Product Summary

The FF200R12KS4 is a 62mm IGBT module with the fast IGBT2 for high-frequency switching. Applications of the FF200R12KS4 are: (1) Medical applications; (2) Motor drives; (3) Resonant inverter applications; (4) Servo drives; (5) UPS systems.

Parametrics

FF200R12KS4 absolute maximum ratings: (1)collector-emitter voltage: 1200 V at Tvj=25℃; (2)DC-collector current: 200 A at Tc=65℃, Tvj=150℃, 275 A at Tc=25℃, Tvj=150℃; (3)repetitive peak collector current: 400 A; (4)total power dissipation: 1400 W at Tc=25℃, Tvj=150℃; (5) gate-emitter peak voltage: +/-20 V.

Features

FF200R12KS4 features: (1) forward voltage: 2.00V; (2) peak reverse recovery current: 140A; (3) recovered charge: 11.5μC; (4) reverses recovery energy: 4.20mJ; (5) thermal resistance, junction to case: 0.18K/W.

Diagrams

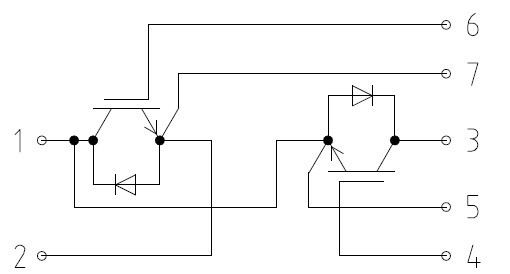

FF200R12KS4 block diagram
