Product Summary

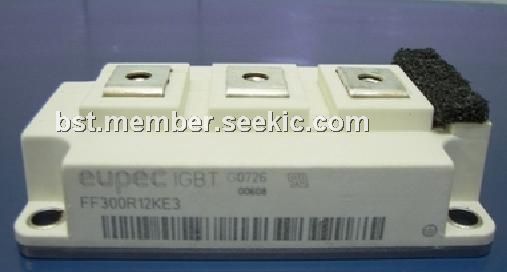

The FF300R12KE3 is an IGBT-Module.

Parametrics

FF300R12KE3 maximum rated values: (1) collector-emitter voltage VCES: 1200 V; (2) IC, nom.: 300 A; (3) DC-collector current IC: 440 A; (4) repetitive peak collector current ICRM: 600 A; (5) total power dissipation Ptot: 1450 W; (6) gate-emitter peak voltage VGES: +/- 20 V.

Features

FF300R12KE3 characteristic values: (1) VCE sat: 1.70 to 2.15 V; (2) collector-emitter saturation voltage: 2.00 V; (3) gate threshold voltage: 5.0 to 6.5V; (4) input capacitance Cies: 21.0nF; (5) collector-emitter cut-off current ICES: 5.0mA; (7) gate-emitter leakage current IGES: 400nA.

Diagrams

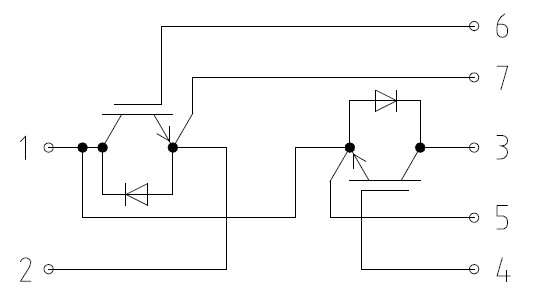

FF300R12KE3 block diagram
