Product Summary

The TT142N16 is a Phase Control Thyristor Module.

Parametrics

TT142N16 absolute maximum ratings: (1) repetitive peak forward off-state and reverse voltages: 1600V; (2)non-repetitive peak forward off-state voltage: 1600V; (3) non-repetitive peak reverse voltage: 1700V; (4) maximum RMS on-state current: 230A; (5) average on-state current: 142A; (6) surge current: 4100A; (7) critical rate of rise of on state current: 150A/μs; (8) critical rate of rise of off-state voltage: 1000V/μs.

Features

TT142N16 Characteristics: (1) on-state voltage: max. 1.56V; (2) threshold voltage: 0.9V; (3) threshold voltage: 1.1mΩ; (4) gate trigger current: max. 150mA; (5)gate trigger voltage: max. 2V; (6) gate non-trigger voltage: max. 0.25V; (7) holding current: max. 200mA; (8) latching current: max. 800mA; (9) gate controlled delay time: max. 3μs.

Diagrams

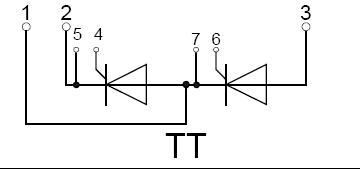

TT142N16 block diagram
