Product Summary

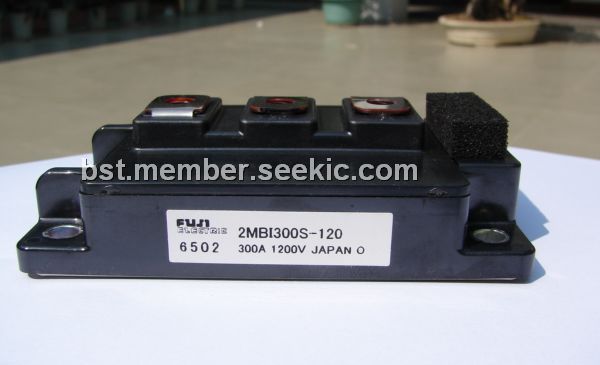

The 2MBI300S-120 is an insulated gate bipolar transistor. The applications of the 2MBI300S-120 include inverter for motor drive, AC and DC Servo drive amplifier, uninterruptible power supply, industrial machines, such as welding machines.
Parametrics
2MBI300S-120 absolute maximum ratings: (1)Collector-Emitter voltage VCES: 1200V; (2)Gate-Emitter voltaga, VGES: ±20V; (3)Collector current: Continuous: Tc= 25℃, IC: 400A; Tc= 80℃, IC: 300A; 1ms: Tc= 25℃, IC pulse: 800A; Tc= 80℃, IC pulse: 600A; -IC: 300A; 1ms, -IC pulse: 600A; (4)Max. power dissipation, PC: 2500W; (5)Operating temperature, Tj: +150℃; (6)Storage temperature, Tstg: -40 to +125℃; (7)Isolation voltage 1, Vis: AC2500(1min.)V; (8)Screw torque: Mounting 2: 3.5Nm; Terminals 2: 4.5Nm.
Features
2MBI300S-120 features: (1)High speed switching; (2)Voltage drive; (3)Low inductance module structure.
