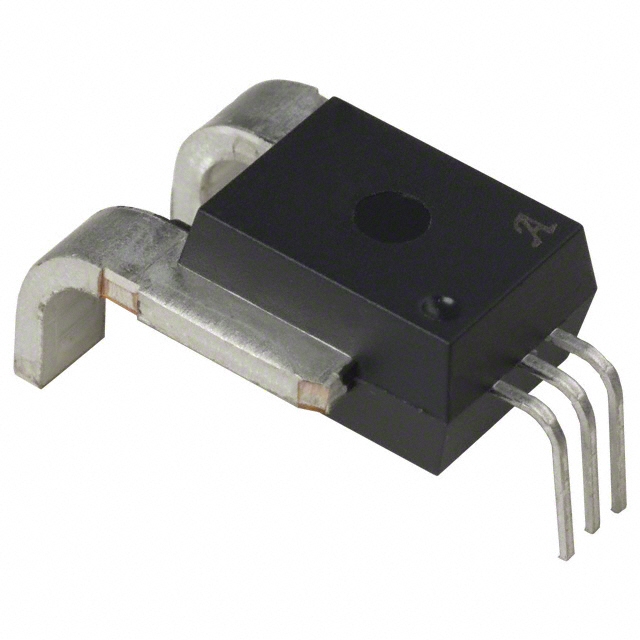

ACS755LCB-050-PFF

ACS755LCB-050-PFF, Current Sensor, CLCC, 16V, 10mA, 3mA

Rated 5 Rating 5 | reviews | Write a review

Price:: US $5.80~6.20 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $5.80~6.20

PartNumber:: ACS755LCB-050-PFF

Brand:: Allegro MicroSystems - Allegro | Pack: CLCC | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Tina's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-06-20

From Other Seller

Part Number:ACS755LCB-050-PFF
US $5.80 - 6.20
74AHC2G08VS SOP-8

US $2.00 - 2.00 / Piece
(0) Remove
2DI240A-055

US $70.00 - 100.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The ACS755LCB-050-PFF is a Current Sensor. It provides economical and precise solutions for current sensing in industrial, automotive, commercial, and communications systems. The ACS755LCB-050-PFF allows for easy implementation by the customer. Typical applications include load detection and management, power supplies, and overcurrent fault protection. The applications of the ACS755LCB-050-PFF include automotive systems, Industrial systems, Power conversion, Battery monitors.

Parametrics

ACS755LCB-050-PFF absolute maximum ratings: (1)Supply Voltage, VCC: 16V; (2)Reverse Supply Voltage, VRCC:–16V; (3)Output Voltage, VOUT: 16 V; (4)Reverse Output Voltage, VROUT:–0.1V; (5)Output Current Source, IOUT(Source):3mA; (6)Output Current Sink, IOUT(Sink): 10mA; (7)Operating Temperature, Ambient, TA, L range:–40℃ to 150℃; (8)Maximum Junction, TJ(max): 165℃; (9)Maximum Storage Temperature, TS:–65℃ to 170℃.

Features

ACS755LCB-050-PFF features: (1)Monolithic Hall IC for high reliability; (2)Single +5 V supply; (3)3kVRMS isolation voltage between terminals 4/5 and pins 1/2/3; (4)18kHz bandwidth; (5)Automotive temperature range; (6)End-of-line factory-trimmed for gain and offset; (7)Ultra-low power loss: 100μΩ internal conductor resistance; (8)Ratiometric output from supply voltage; (9)Extremely stable output offset voltage; (10)Small package size, with easy mounting capability; (11)Output proportional to ac and dc currents.
