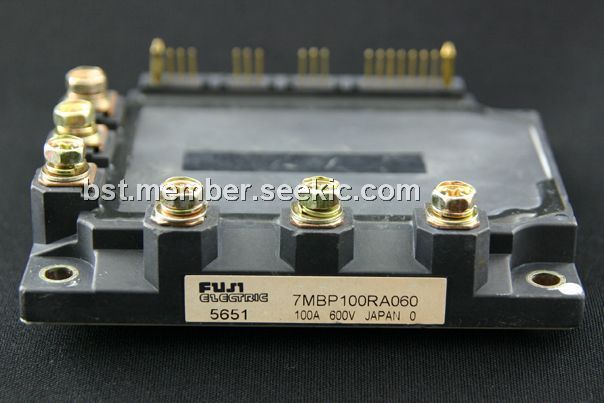

The 7MBP100RA060 is an IGBT-IPM.
Parametrics
7MBP100RA060 absolute maximum ratings: (1)DC bus voltage: 450V; (2)DC bus voltage (surge): 500V; (3)DC bus voltage (short operating): 200-400V; (4)Collector-Emitter voltage: 600V; (5)DB Reverse voltage: 600V; (6)Collector power dissipation: 400W; (7)DB-Forward current of Diode: 50A; (8)DB-Collector power dissipation: 198W; (9)Junction temperature: 150℃; (10)Input voltage of power supply for Pre-Driver: 20V; (11)Input signal current: 1mA; (12)Alarm signal current: 15mA; (13)Storage temperature: -40~125℃; (14)Operating case temperature: -20~100℃.
Features
7MBP100RA060 features: (1)Temperature protection provided by directly detecting the junction; (2)temperature of the IGBTs; (3)Low power loss and soft switching; (4)Compatible with existing IPM-N series packages; (5)High performance and high reliability IGBT with overheating protection; (6)Higher reliability because of a big decrease in number of parts in; (7)built-in control circuit.
