Product Summary

The FZ400R12KS4 is a 62mm C-series module with the fast IGBT2 for high-frequency switching.

Parametrics

Maximum rated values: (1)collector-emitter voltage at Tvj=25℃, VCES: 1200v; (2)DC-collector current at Tc=25℃, Tvj=150℃, IC: 510A; (3)repetitive peak collector current at tp=1ms, ICRM: 800A; (4)total power dissipation at Tc=25℃, Tvj=150℃, Ptot: 2500W; (5)gate-emitter peak voltage, VGES: ±20 v.

Features

Specifications: (1)Configuration: Single Dual Emitter; (2)Collector- Emitter Voltage VCEO Max: 1200 V; (3)Continuous Collector Current at 25 C: 510 A; (4)Maximum Operating Temperature: + 125℃; (5)Package / Case: 62MM; (6)Maximum Gate Emitter Voltage: +/- 20 V; (7)Minimum Operating Temperature: - 40℃; (8)Mounting Style: Screw; (9)Standard Pack Qty: 10.

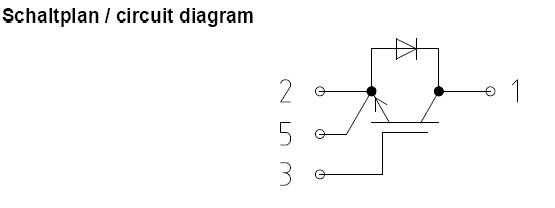

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
FZ400R12KS4
FZ400R12KS4
Infineon Technologies
IGBT Modules IGBT-Module/ IGBT-inverter
Data Sheet
0-6: $94.97
6-10: $85.48
