Product Summary

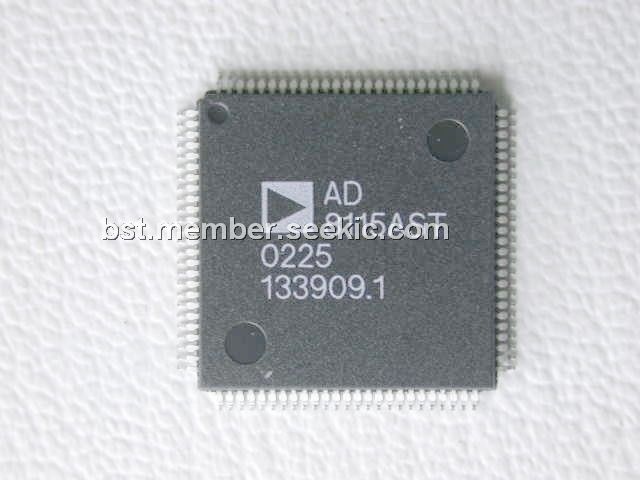

The AD8115AST is a high speed 16 × 16 video crosspoint switch matrice. It offers a –3 dB signal bandwidth greater than 200 MHz and channel switch times of less than 50 ns with,1% settling. With –70 dB of crosstalk and –90 dB isolation (@ 5 MHz), the AD8115AST is useful in many high speed applications. The differential gain and differential phase of better than 0.05% and 0.05° respectively, along with 0.1 dB flatness out to 25 MHz while driving a 75 W back-terminated load, make the AD8115AST ideal for all types of signal switching. The AD8115AST includes 16 independent output buffers that can be placed into a high impedance state for paralleling crosspoint outputs so that off channels do not load the output bus.

Parametrics

Absolute maximum ratings: (1)Supply Voltage: 12.0 V; (2)Internal Power Dissipation: AD8115 100-Lead Plastic LQFP (ST): 2.6 W; (3)Input Voltage: ±VS; (4)Output Short Circuit Duration: Observe Power Derating Curves; (5)Storage Temperature Range: –65℃ to +125℃; (6)Lead Temperature Range (Soldering 10 sec): +300℃.

Features

Features: (1)16× 16 High Speed Nonblocking Switch Arrays AD8115; G = +2; (2)Serial or Parallel Programming of Switch Array; (3)Serial Data Out Allows “Daisy Chaining” of Multiple 16 × 16s to Create Larger Switch Arrays; (4)High Impedance Output Disable Allows Connection of Multiple Devices Without Loading the Output Bus; (5)For Smaller Arrays See Our AD8108/AD8109 (8 3 8) or AD8110/AD8111 (16 3 8) Switch Arrays; (6)Complete Solution: Buffered Inputs; Programmable High Impedance Outputs; 16 Output Amplifiers, AD8115 (G = +2); Drives 150 V Loads; (7)Excellent Video Performance: 25 MHz, 0.1 dB Gain Flatness; 0.05%/0.058 Differential Gain/Differential Phase Error(RL = 150 Ω); (8)Excellent AC Performance: –3 dB Bandwidth: 225 MHz; Slew Rate: 375 V/ms; (9)Low Power of 700 mW (2.75 mW per Point); (10)Low All Hostile Crosstalk of –70 dB @ 5 MHz; (11)Reset Pin Allows Disabling of All Outputs (Connected Through a Capacitor to Ground Provides “Power-On” reset Capability); (12)100-Lead LQFP Package (14 mm × 14 mm).

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
AD8115AST
AD8115AST

Analog Devices Inc

IC VIDEO CRSSPT SW 16X16 100LQFP

Data Sheet

Negotiable
AD8115ASTZ
AD8115ASTZ


IC VIDEO CROSSPOINT SWIT 100LQFP

Data Sheet

0-1: $59.56
1-10: $55.83
10-100: $50.25
100-250: $49.63
